| 20ft (1) Piece Wind Speed 182 Mph 5 Butt Dia. x .188 Wall Thickness Internal Halyard Winch Aluminum Flagpole
20ft (1) Piece Wind Speed 182 Mph 5 Butt Dia. x .188 Wall Thickness Internal Halyard Winch Aluminum Flagpole
Item# IW205188
Regular price:
$2,608.95
Sale price:
$
2,558.95
Finish :
Natural Satin (Standard) $00.00
Clear Anodized (+$400.00)
Dark Bronze Andz (+$400.00)
Black Andz** (+$400.00)
White PP* (+$949.00)
Silver PP* (+$949.00)
Gray PP* (+$949.00)
Dark Bronze PP* (+$949.00)
Black PP* (+$949.00)
Dark Green PP* (+$949.00)
Mount :
Ground Sleeve (Standard) $00.00
Shoe Base w/Anchor Bolts (+$345.00)
Tilting Shoe Base w/Anchor Bolts (+$745.00)
Counter Balanced w/Support Channels (+$1685.00)
Flag:
No Flag ($00.00)
Add 3'x5' Embroidered Nylon American Flag. Made in the USA. (+ $36.95)
Hooks:
Fly One Flag (Standard) ($00.00)
Add Second 3'x5' Flag Arrangement (+ $99.95)
Eagle:
No Eagle (+ $00.00)
Gold Eagle, Medium Size. Made in the USA. (+ $124.95)
Natural Eagle, Medium Size. Made in the USA. (+ $134.95)
Pewter Eagle, Medium Size. Made in the USA. (+ $134.95)
Light:
No Light (+ $00.00)
32 Solar Led Down Light (Origin Made in China) (+ $139.95)
120 Solar Led Down Light (Origin Made in China) (+ $149.95)
266 Solar Led Down Light (Origin Made in China) (+ $195.95)
Cree Solar Up Light (Origin Made in China) (+ $189.95)
18 Watt Hard Wired Above Ground Light Kit (Origin Made in USA) (+ $669.95)
Qty:
Standard* "Natural Satin" finish is 2 to 3 weeks for delivery!
All Hardware & Ground Sleeve Included!
Custom Finishes; Anodized & VS. Powder Paint

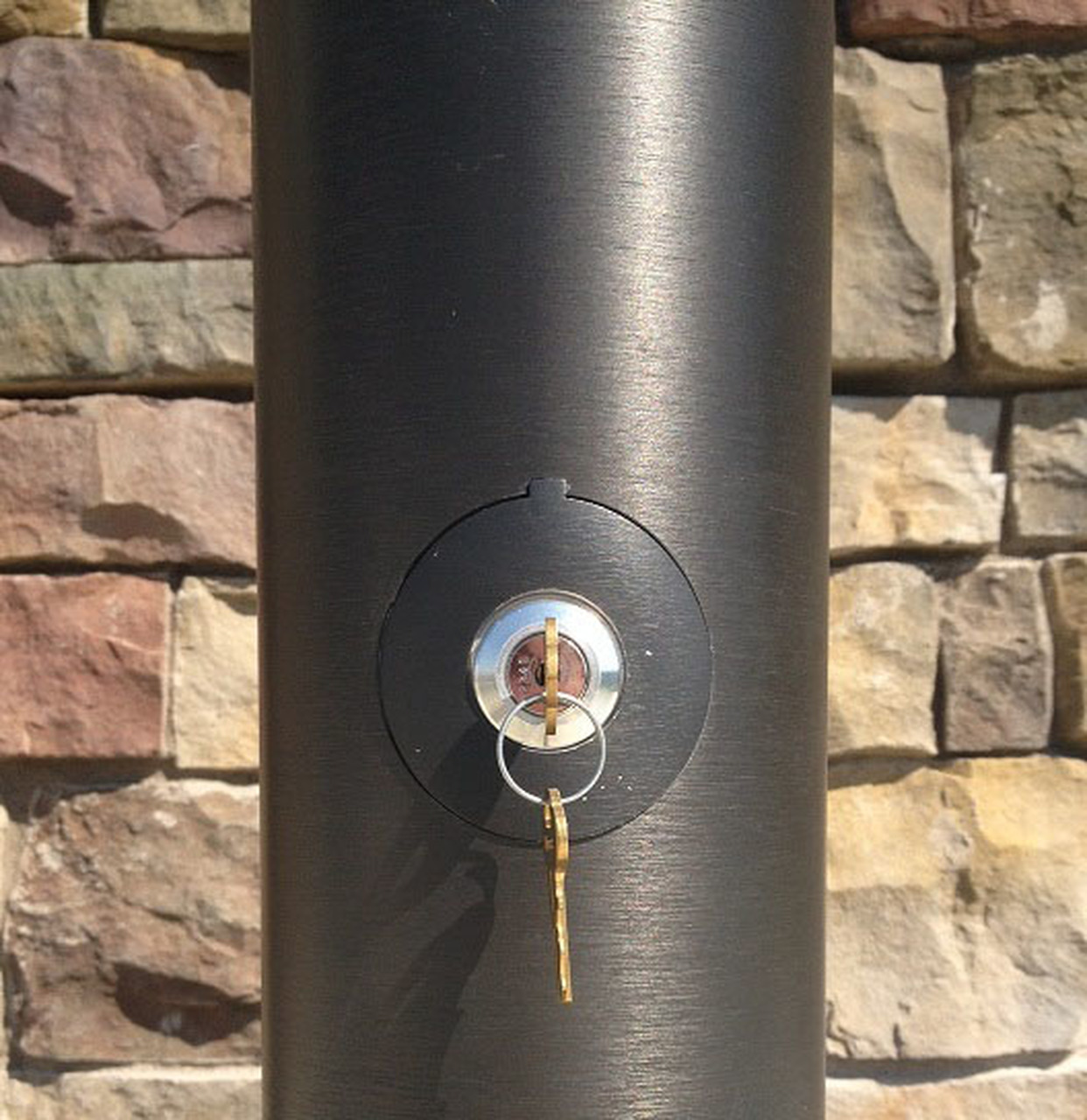

Internal Winch With Removable Hand Crank. (Image may vary)
Material: Material: 100% 6063-T6 Solid Aluminum Tubing
Standard Finish: Natural Satin.
Custom Finish: Main hardware painted to match.
Overall Length: 22ft
Exposed Height: 20ft
Sections: 1
Top Diameter: 3"
Butt Diameter: 5"
Wall Thickness: .188
Shipping Weight: 146 lbs
Max Unflagged Wind Speed: 287 mph
Max Flagged Wind Speed: 182 mph flying a 4'x6' Flag.
Standard Flag Size: 4'x6' (Flag Sold Separately)
4'x6' Flag Arrangement Inc.
Cast Aluminum Revolving Truck Assembly With-
-S/S Bearing Concealed inside a Cylindrical Hood.
5" Anodized Gold Ball Finial.
S/S Aircraft Cable Halyard.
Qty (2) Stainless Steel Snap Hooks.
Qty (1) Beaded Retainer Ring & Stainless Steel Quick Link.
Qty (1) Plastic Covered Counterweight.
Machine Spun Aluminum Flash Collar.
16 Gauge Galvanized Corrugated Ground Sleeve.
Complete Installation Instructions.
Installation Tech Support.
Warranty: Lifetime Shaft Warranty (Restrictions may apply) 1 Year Hardware
All Commercial Flagpoles Ship LTL Freight, Common Carrier
Origin: MADE IN THE USA.
*Adding a Shoe Base or Tilt Base Mount will reduce wind loads up to 20%
Installation Information
Ground Sleeve (Standard) Shoe Base & Tilting Shoe Base (Optional)
